[Ship from US/UK/EU] 2024 Autel MaxiSys MS909 Diagnostic Tablet Support Topology Module Mapping and J2534 ECU Programming (for USA Only)

stars, based on 0 reviews 47 orders
$3099.00now$2899.00 piece
items available
SKU:MS909      Weight:10kg
  • Free worldwide shipping
  • Secure payments
  • Return and refund guarantee
  • Carbon neutral
Contact Us
AutelShops.com
  • Autel MaxiSys MS909 Diagnostic Tablet Support Topology Module Mapping

    MaxiSys MS909 features a 10-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The MS909 features the new MaxiFlash VCI, a combination VCI and vehicle communication tool providing faster dual Wi-Fi vehicle and network communications. The MS909 features front and rear cameras and a rechargeable Lithium battery providing 8 hours of continuous use to ensure you always have the power to scan

    [Ship from US/UK/EU] 2024 Autel MaxiSys MS909 Diagnostic Tablet Support Topology Module Mapping and J2534 ECU Programming (for USA Only)

    Maxisys MS909 Advantages:

    1. Advanced Diagnostic Features: The Autel scanner MaxiSys MS909 equips multiple diagnostic functions such as Topology Mapping, Diagnostics Functions, 36+ Special Functions (oil reset, brake reset, SAS reset, etc.), Whole-System Diagnostics for 80 vehicle brands, Online Coding for BMW, Audi, VW, etc., Personalization for Nissan, Peugeot, Citroen, etc., Online Pro-gra//mming to update existing software, Active Tests for deeper diagnostics…
  • 2. Worldwide Vehicle Coverage: More than 80 manufacturers, 140 brands worldwide are supported. Each diagnostic function has been tailored according to the vehicle model so that you can face the automotive market demand with ease. Compatibility: it supplied with MaxiFlash VCI with Enhanced Protocol Compatibility, which supports D-PDU, RP1210, CANFD. J2534 and DoIP protocols. If you’re confused about the scanner compatibility, please message us.
    3. Good Use Experience: 10 inch TFT-LCD touchscreen for swift diagnosis and optimum viewing. The touchscreen is resistant to dirt and oil and the hard rubber surface is treated with high-quality carbon fiber, making the surface texture more refined.
    4. User-Friendly Software Design to Facilitate Repairs: Automatic system and software updates with real-time push message notifications via the internet. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle record well organize. Cloud-based Data Manager saves customer and vehicle records, scanner data, and technician notes

    [Ship from US/UK/EU] 2024 Autel MaxiSys MS909 Diagnostic Tablet Support Topology Module Mapping and J2534 ECU Programming (for USA Only)

    Features:

    1. Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
    2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
    3. Automatic system and software updates with real-time push message notifications via internet
    4. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
    5. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
    6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

    Worldwide Vehicle Coverage:

    More than 80 manufacturers, 140 brands worldwide are supported. Each diagnostic function has been tailored according to the vehicle model so that you can face the automotive market demand with ease.

    Compatibility:

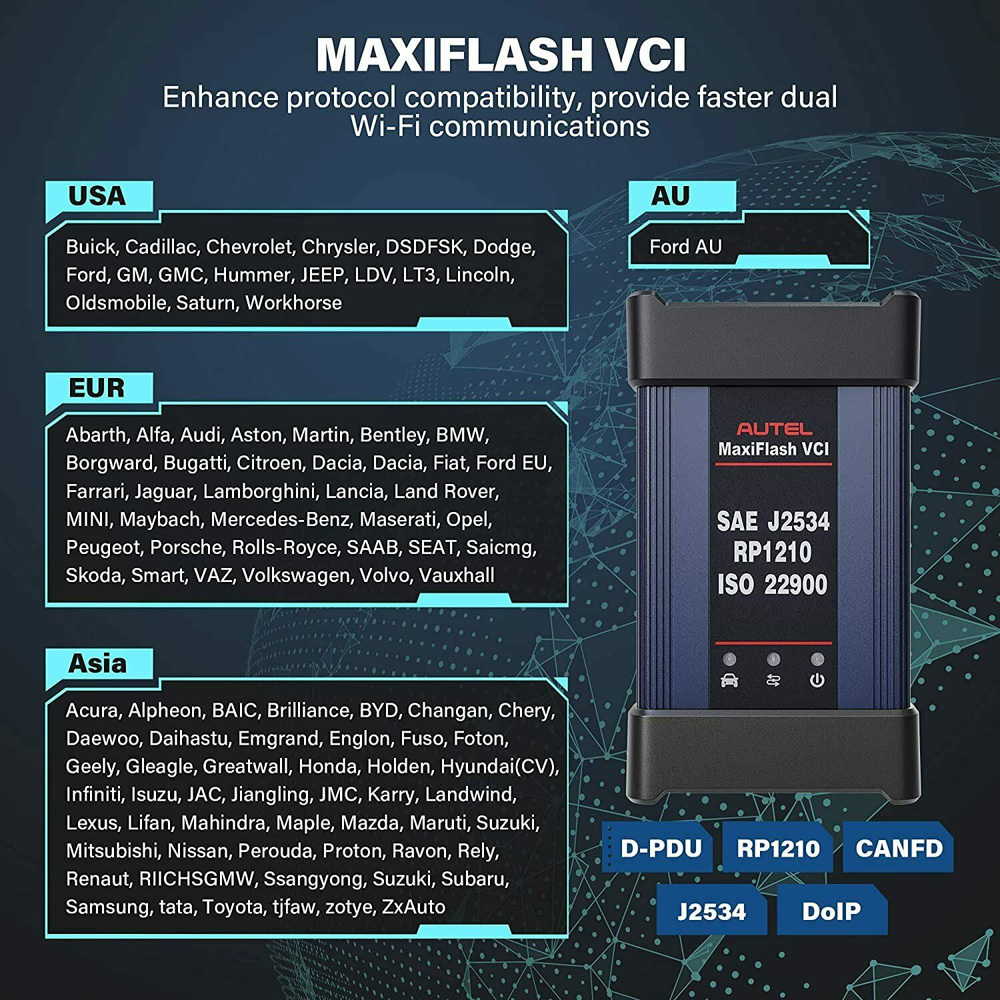

    It supplied with MaxiFlash VCI with Enhanced Protocol Compatibility, which supports D-PDU, RP1210, CANFD. J2534 and DoIP protocols. If you’re confused about the scanner compatibility, please message us.

    [Ship from US/UK/EU] 2024 Autel MaxiSys MS909 Diagnostic Tablet Support Topology Module Mapping and J2534 ECU Programming (for USA Only)

    Functions:

    1. Diagnostics – Your Specialist Diagnostic Helper

    The Diagnostic Functions integrated on Autel scan tool MS909 provide every professional mechanic with massive and substantial information of faults detected and offer you exhaustive and comprehensive repair assistance.

    1). Tech Services Bulletins – see official announcements issued by vehicle manufacturers regarding common problems including vehicle modules, DTCs, repair methods, program updates, and recall strategies.
    2). DTC  - contain assistance and information related to the fault codes, including the fault description, condition, fault influence, possible cause, and possible solution. The assistance information varies vehicle.
    3). Assistant - display a list of recommended tests, the completion status, and priority for the undertaking. The higher the priority, the earlier the components should be tested. There are a location diagram and wiring diagram to help you to locate the components, connectors, wiring, and ground electrodes.
    4). Tips - display a range of diagnostic and repair steps, including the information needed in order to clear the faults. The repair steps are provided in text and video.
    5). Component Measurement - direct technicians to an oscilloscope in one click. This section may include relevant waveforms and waveform analysis to aid the technician in diagnostics and repairs.
    6). Relevant Cases - recommend repair processes that may be relevant to the vehicle and fault. These repair cases/suggestions provide the technician with great insight when diagnosing and repairing vehicle faults.

    [Ship from US/UK/EU] 2024 Autel MaxiSys MS909 Diagnostic Tablet Support Topology Module Mapping and J2534 ECU Programming (for USA Only)

    2. Advanced ECU Programming & Coding for Better Vehicles Performance

    The coding and programming function of the scanner MS909 is used to code adaptive data of certain components after making repairs or replacements as well as update the computer software of the vehicle to the latest version. Available programming or coding operations vary by test vehicle.

    * Coding: also known as Teach-in Program, or Component Adaptation, is used to code adaptive data for vehicle control modules or change parameters after repairs, replacements, or retrofitting of vehicle parts such as injectors, radios and or even starters, etc. It can also be used to flash hidden functions to make vehicles achieve higher performance.

    * Reprogramming: download the latest version of the software from the online server database through Internet access to update ECUs, and reprograms the newest version into the vehicle's ECU. A series of on-screen operational instructions will display to guide you through the programming procedure. Autel provides its own server for BMW & BENZ software. All other OEM flashing software can be purchased separately and used with the MS908P VCI device.

    [Ship from US/UK/EU] 2024 Autel MaxiSys MS909 Diagnostic Tablet Support Topology Module Mapping and J2534 ECU Programming (for USA Only)

    3. Auto Scan for Full System Diagnostics

    The Auto Scan function performs a comprehensive scanning of all the systems in the vehicles. The systems include but are not limited to ECM, PCM, TCM, ABS, RCM, IPC, ACM, AHCM, APIM, BCMii, DDM, FCDIM, FCDIM, FCIM, FDSM, GPSM, HCM, HVAC, IPM-A, etc., and it displays according to specific vehicle brands and models.

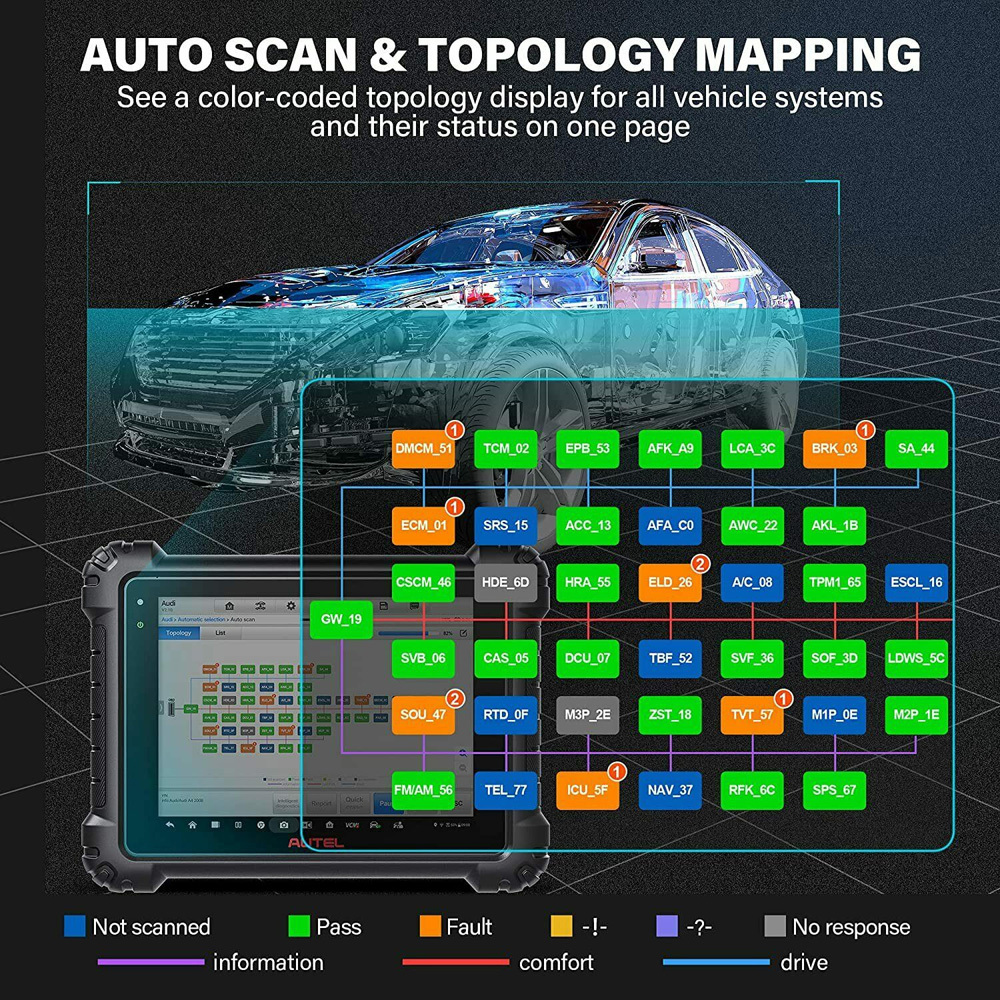

    Topology Mapping Makes the Diagnostic Results More Readable & Comprehensive

    The systems diagnostics result scanned by the scanner will be displayed in topology module mapping, which shows a system distribution diagram of the vehicle control modules and the relationship between vehicle systems. You can enter any specific system to see more detailed diagnostic information. On the Topology screen, a system with identified faults will display in orange, making the diagnosis results are clear at a glance, which is convenient for mechanics to perform systematic and comprehensive diagnostics and analysis.

    [Ship from US/UK/EU] 2024 Autel MaxiSys MS909 Diagnostic Tablet Support Topology Module Mapping and J2534 ECU Programming (for USA Only)

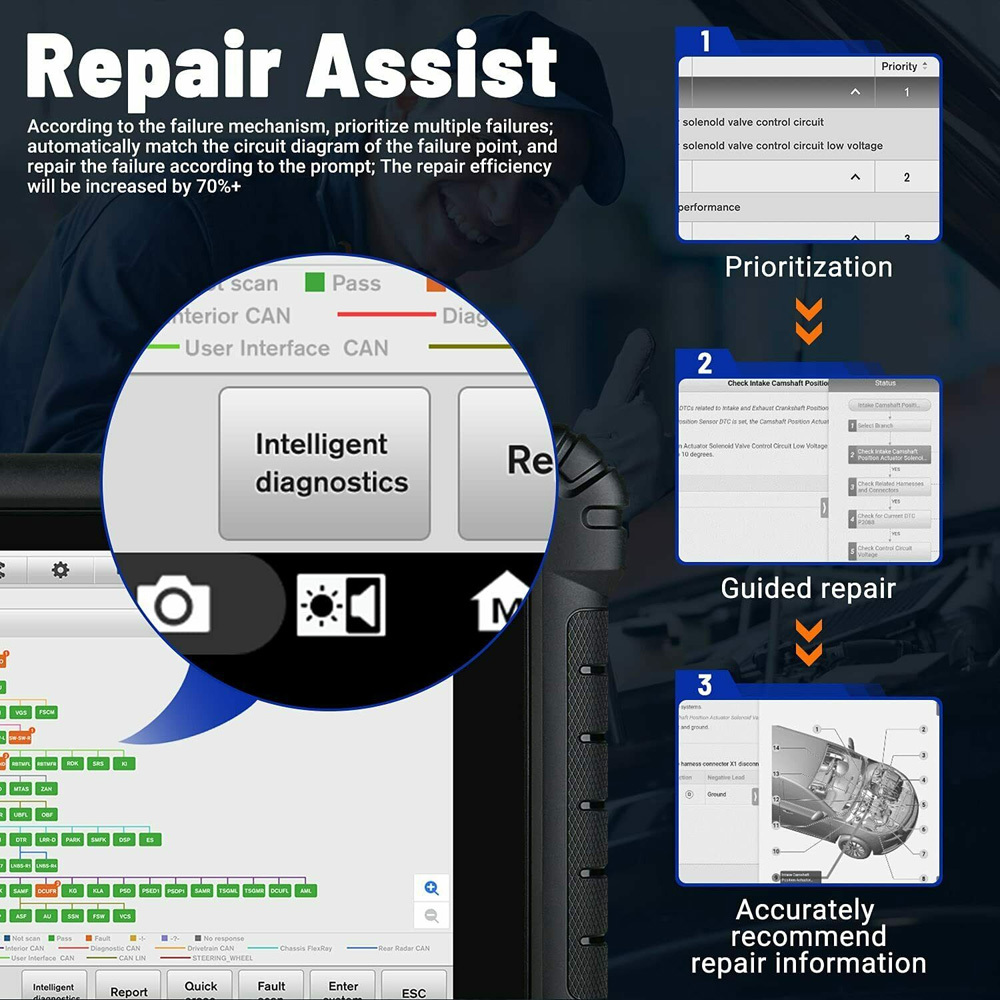

    4. Repair Assistant

    Assist Software displays a list of recommended tests, the completion status and priority for the undertaking. The higher the priority, the earlier the components should be tested.

    [Ship from US/UK/EU] 2024 Autel MaxiSys MS909 Diagnostic Tablet Support Topology Module Mapping and J2534 ECU Programming (for USA Only)

    5. Comprehensive Service Functions

    Doing regular and routine maintenance on a modern car is impossible without a diagnostic system. Even the simplest procedures require the participation of an auto scanner. That's why Autel engineers have been working on them and making them as user-friendly as possible in the new MaxiSys MS909. Now you can easily do functions like:

    1) Oil Reset: Reset the oil change calculator in the engine and automatic transmission
    2) EPB: Replacement of brake pads on vehicles with an electric parking brake
    3) SAS: Adaptation of the sensor to the angular position of the steering wheel
    4) DPF: Regeneration of diesel particulate filter
    5) Brake Bleed: ABS Brake Bleeding
    6) TPMS: Battery registration and reset
    7) Seat Calibration: Calibrate the memory in replaced or repaired seats
    8) Airbag Reset: Resets the airbag data to clear the airbag collision fault indicator
    9) A/F Reset: Set or learn Air/Fuel ratio parameters
    10) Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality
    11) Suspension Reset: Adjust the vehicle body height sensor for level calibration
    12) BMS: Battery registration and reset

    [Ship from US/UK/EU] 2024 Autel MaxiSys MS909 Diagnostic Tablet Support Topology Module Mapping and J2534 ECU Programming (for USA Only)

    MS909 Updates in 2021. Sep:

    Tesla: Supports Basic Function including Information, Live Data, Read/ Erase Codes, as well as 41 Hot Special Functions including BMS Reset Alert, BMS Clear Contactor Stress Index, EPB Service Mode, Brake Bleed and Read/Write TPMS Sensor ID for Model X and Model S.

    Toyota:
    1. Adds Diagnostic Support for Ctpod, Supra of 2019-2021, and 65 New Models, Realizing Full Coverage of Models.
    2. Adds Intelligent Recommendation Function for Hot DTCs for Corolla of 2010-2019 for North America.

    Benz:
    1. Supports, 24 Models of 2021 including A 200 4MATIC,GLA 180, GLA 200,EQA 250 and EQA 300.
    2. Adds Hot Functions including Information, Trouble Codes, Oil Reset, etc. for 243/298 Chassis.

    BMW:
    1. Adds More than 900 DTCs, More than 80 Live Data terms and More than 3,000 DTC Analyses.
    2. Adds Diagnostic Support & Topology Function for Models up to April 2021.

    VAG:
    1.Supports Basic Functions (Read Codes, Live Data, Active Test Basic Settings and Learning) for Models up to 2021.
    2. Adds 252 Guide Functions in 13 Categories including DPF, SAS, EPB and Oil Reset for WW, Audi and SKoda.

    Chrysler:
    1. Adds Functions for 12 Models of 2020-2021 such as K8-Grand commander, PD-Neon and VM-ProMaster city.
    2. lmproves 720 Special Functions for 48 Models of 2020-2021 Honda.
    3. Adds Functions for 21 Models of 2021such as Ballade Hybrd. Breeze Hybnid, Breeze PHEV, etc.

    [Ship from US/UK/EU] 2024 Autel MaxiSys MS909 Diagnostic Tablet Support Topology Module Mapping and J2534 ECU Programming (for USA Only)

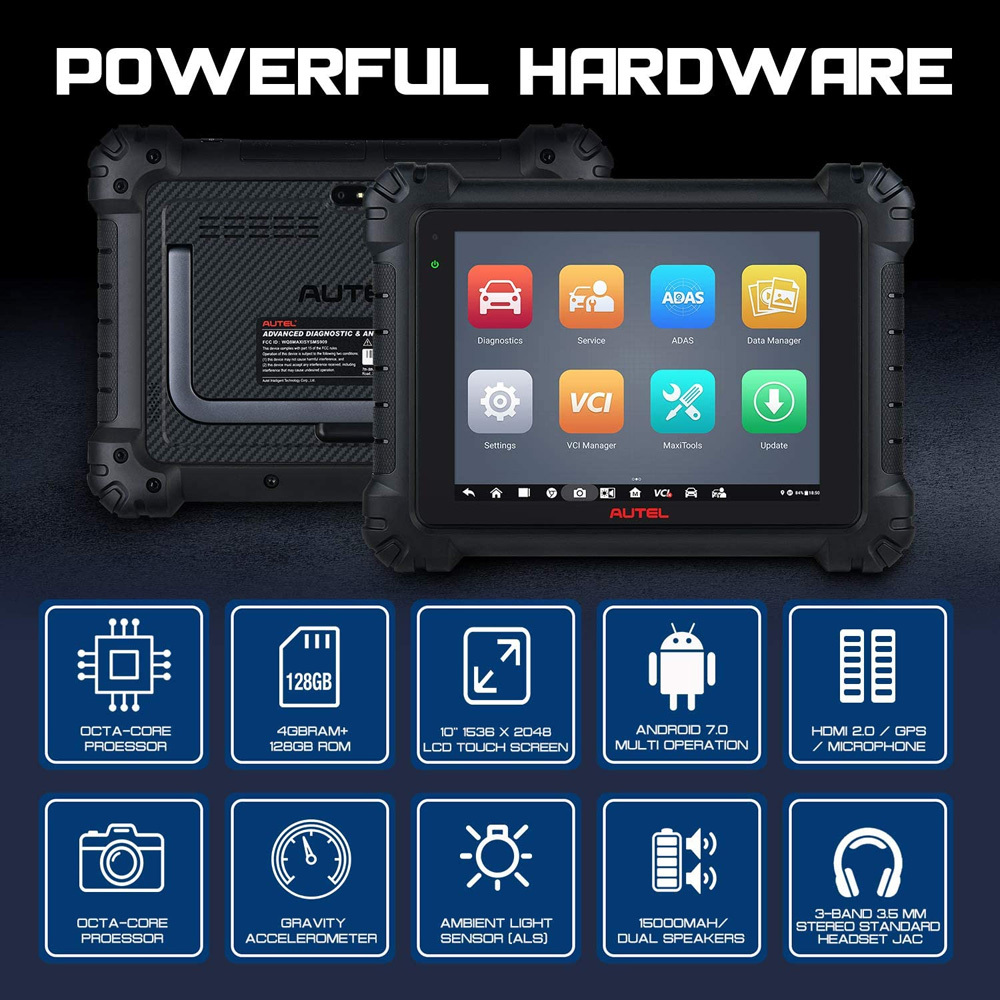

  • Specification:

Operating SystemAndroid 10.0
Processor

Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

Memory4GB RAM & 128GB On-board Memory
Display9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity

Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)
BT V5.0 + BR/EDR
GPS
USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
HDMI 2.0
SD Card (Support up to 256GB)

Camera

Rear: 16 Megapixel, Autofocus with Flashlight
Front: 16 Megapixel

Sensors

Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output

Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jac

Power and Battery

15000mAH 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage12V/1.3A Adapter
Operating Temperature0 to 50°C (32 to 122°F)
Storage Temperature-20 to 60°C (-4 to 140°F)
Protocols

DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230,
SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2,
BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

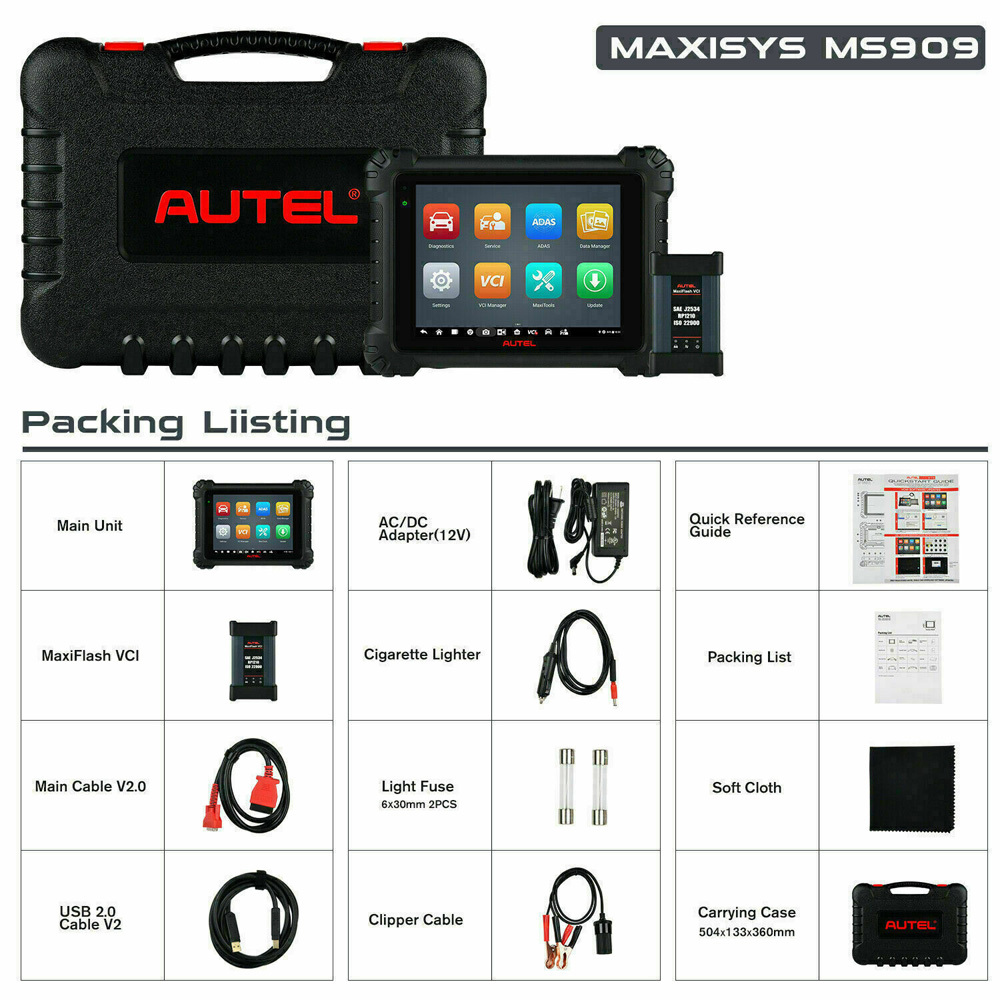

  • Package List:

    1x MS909 Main Unit
    1x MaxiFlash VCI
    1x Main Cable V2.0
    1x USB 2.0 Cable V2
    1x AC/DC Adapter(12V)
    1x Cigarette Lighter
    2x Light Fuse 6x30mm
    1x Clipper Cable
    1x Quick Reference Guide
    1x Packing List
    1x Soft Cloth
    1x Carrying Case
