[English Version] Autel MaxiBAS BT506 Auto Battery and Electrical System Analysis Tool Works for iOS/ Android and Autel MaxiSys Tablet

Autel MaxiBAS BT506 Auto Battery and Electrical System Analysis Tester Works for iOS/ Android and Autel MaxiSys Tablet

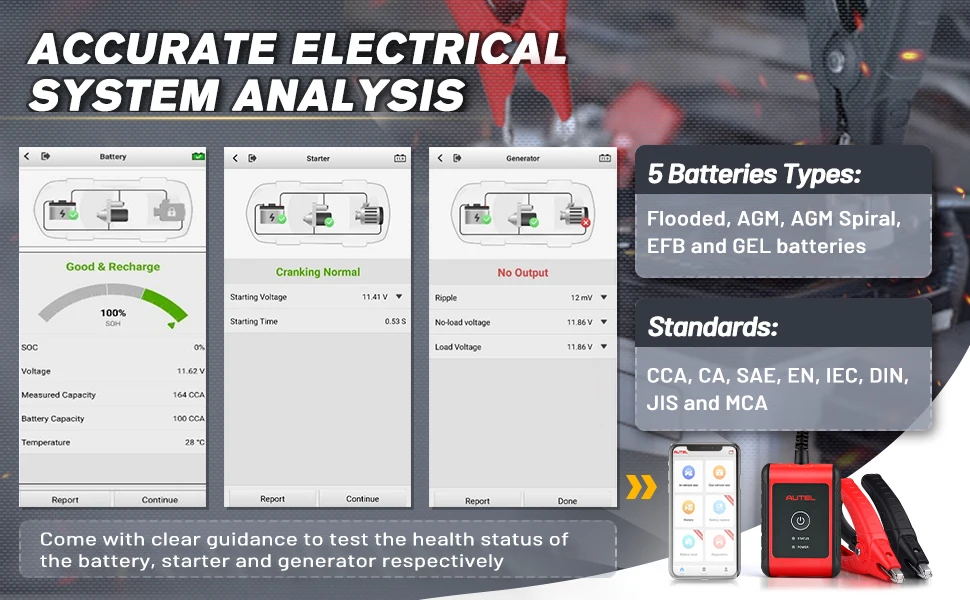

The BT506 is a battery and electrical system analysis tool that use as Adaptive Conductance an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT506 enables technicians to view the health status of vehicle's battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT506 to perform testing and display test results.

Autel MaxiBAS BT506 Advantages:

1. Includes Connected Cable with Clamps
2. Test 6- and 12-Volt Batteries: 100 - 2000 CCA
3. Test 12- and 24-Volt Cranking/ Charging Systems
4. Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
5. Battery Health Report/ Temperature Compensation / Cloud-Based Service
6. Battery Ratings: Compatible with CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
7. Support In-Vehicle and Out-of-Vehicle Testing of Passenger Vehicle Batteries
8. Ability Control via Smart Phone via Wifi/BT to performs Testing and displays Test Results. ( Download from APP Store for IOS or Google store for Android.)
9. Autel MaxiBAS BT506 User Manual Preview Here

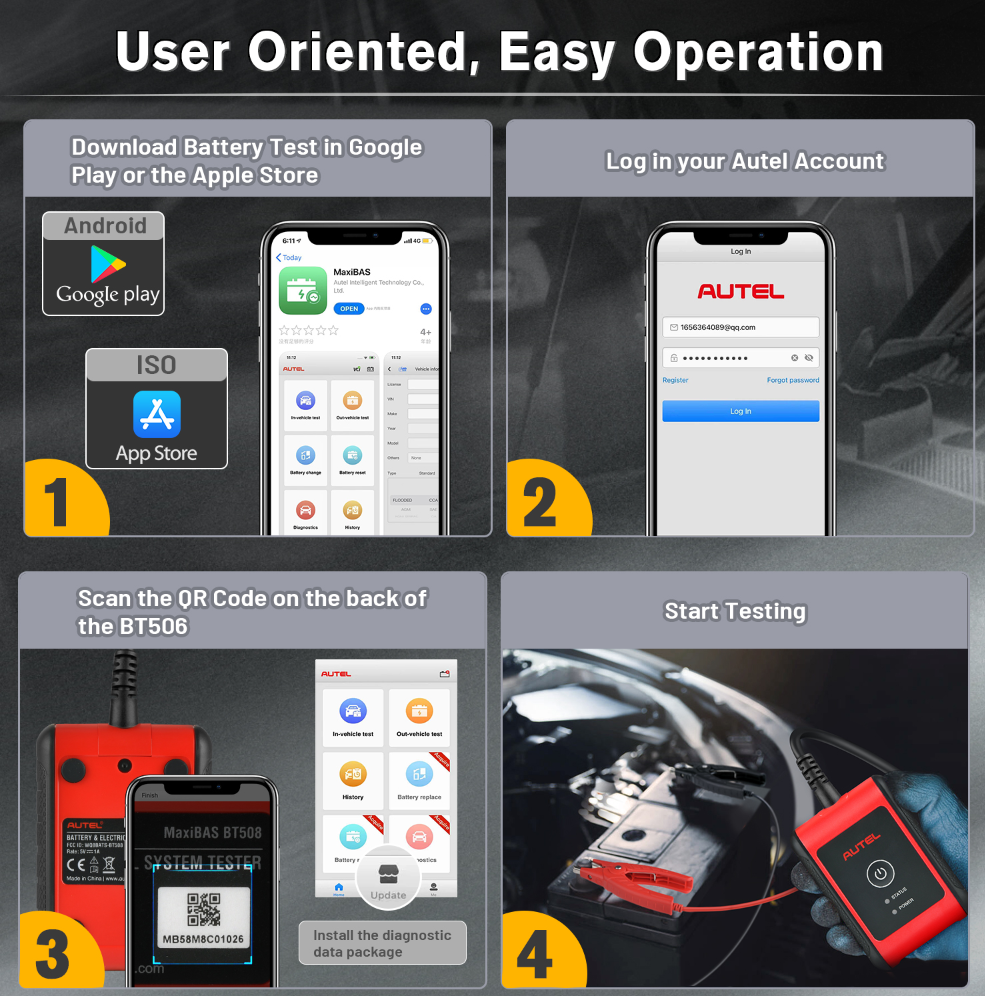

Autel MaxiBAS BT506 Download Instruction:

Specifications:

Connectivity: USB2.0, Type C
Bluetooth V3.0 BR/EDR+ V4.2 LEDual-Mode
Input Voltage: 5 V DC
Working Current: < 150 mA at 12 V DC
Internal Battery: N/A
CCA Range: 100 to 2000 A
Voltage Range: 6 to 36 V
Working Temperature: -10°to 50° C (14° to 122° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
Dimension (L x W x H): 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
Weight: 320 g (0.7 lb.)

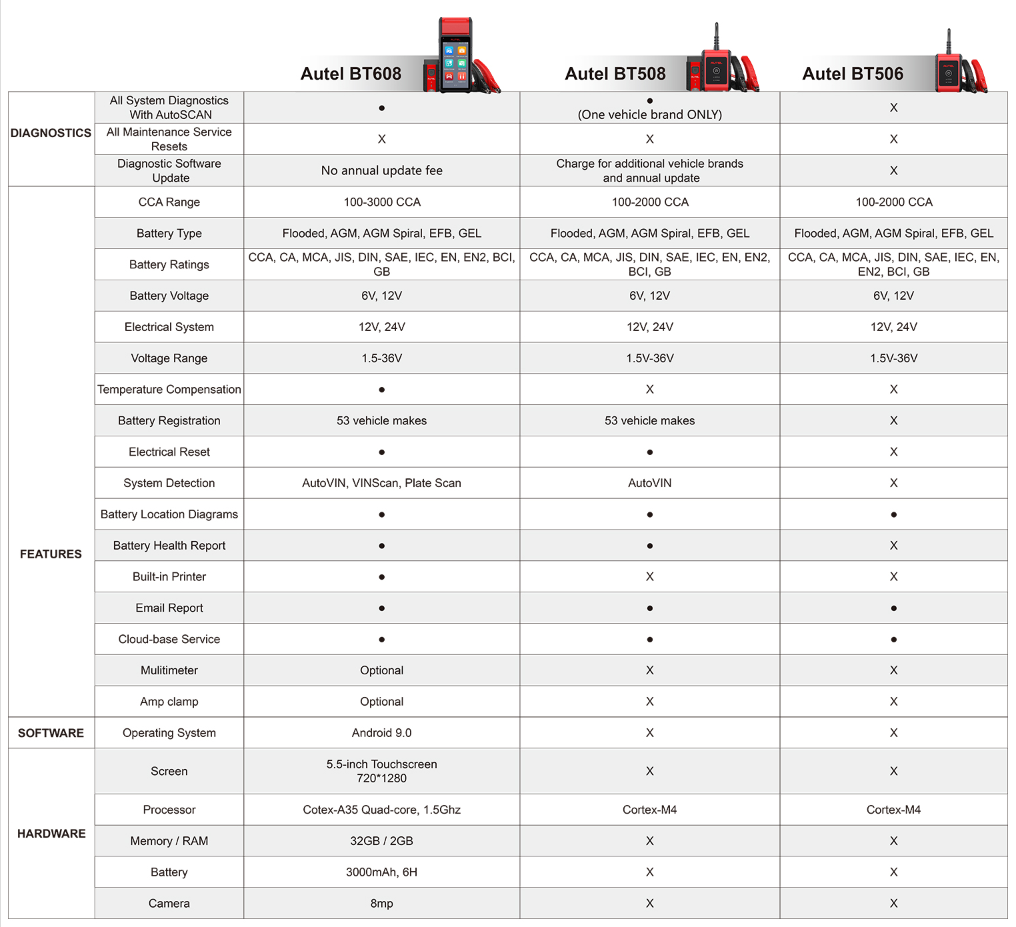

Autel MaxiBAS BT506 Comparision with BT608/BT508

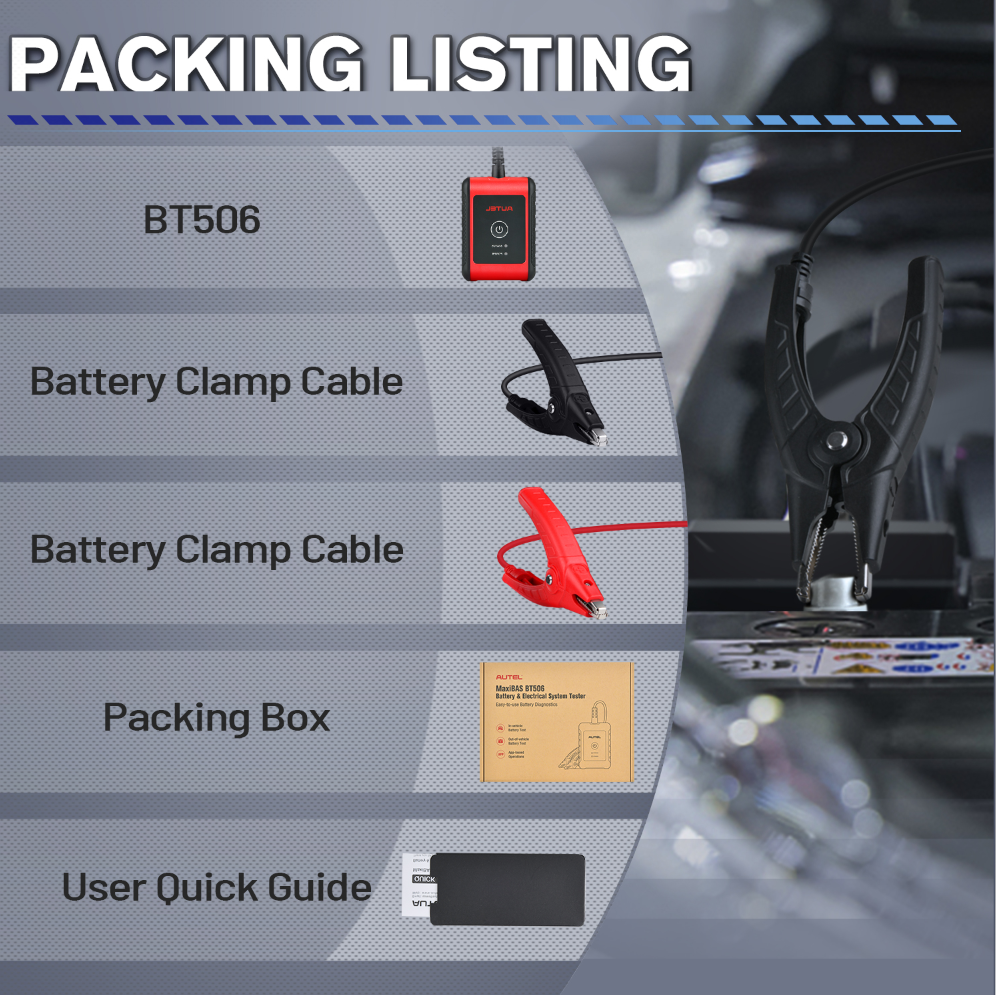

Autel MaxiBAS BT506 Product includes:

1pc x Main pad
1pc x  Clamp cable
